4Vdc digital control panel for swing doors.

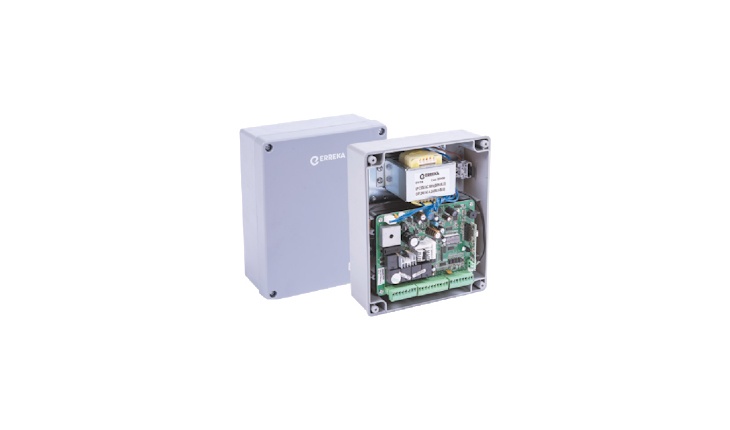

SMART-D201
- Power supply for one or two 24Vdc swing door motors with direct current
- Obstacle detection function with amperometric sensor with programmable threshold
- Built-in 433.92 MHz radio receiver
- Power for 24VDC electro lock
- Power for 24VDC signalling lamp
- Adjustable soft stop and operating speed
- Imput for limit switches on opening and closing
MORE INFORMATION ABOUT THIS PRODUCT

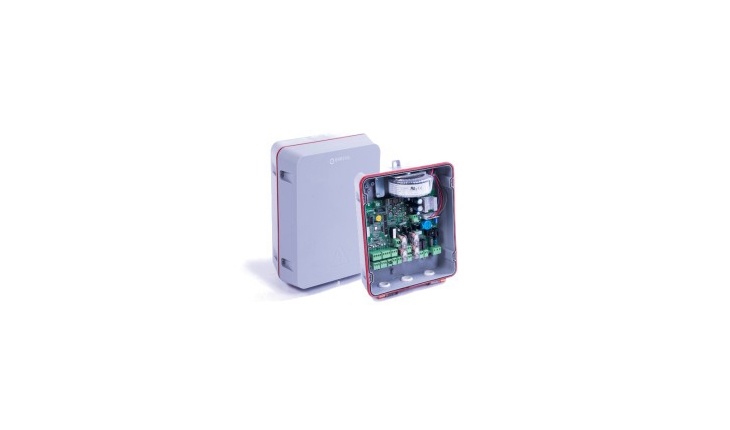

VIVO-D203
Universal 24Vdc digital control panel for swing, sliding and up-and-over doors.
- Programming with 4 push buttons and 4 digit 7 segment display
- Power output for 24Vdc electric lock
- Management for start and pedestrian start via radio
- Connector for traffic light management card
- Power output for voltage free signalling lamp (for use in flashing lamps)
- Total and partial operating cycle counter
- Viewing input status via display and LED
- Safety devices testing before every opening
- Dead man function
- Encoder input for 1 or 2 signals
- Access code to restrict programming changes
- On/Off switch control panel
MORE INFORMATION ABOUT THIS PRODUCT

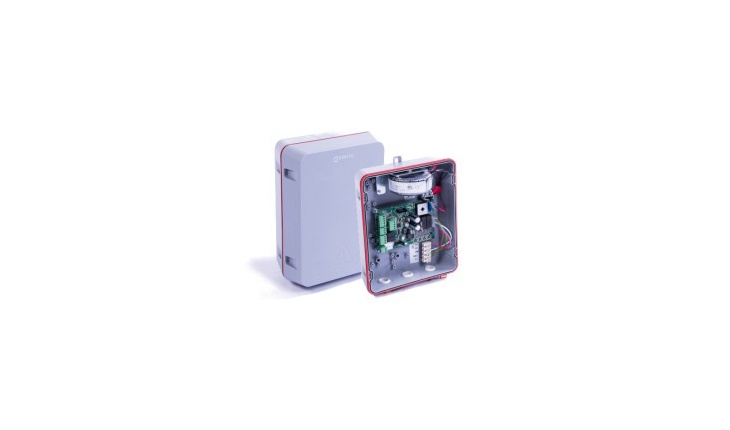

VIVO-D102
24Vdc digital control panel with encoder for up-and-over and sectional doors.
- Programming with 4 push buttons and 4 digit 7 segment display
- Obstacle detection function with amperometric sensor with programmable threshold
- Connector for traffic light management card
- Input for encoder
- Input for emergency batteries (AVI04)
- Soft start and stop for leaves in the opening and closing phase to prevent noisy opening and closing and rebounds
- Adjustable soft stop and operating speed
- Safety devices testing before every opening
MORE INFORMATION ABOUT THIS PRODUCT

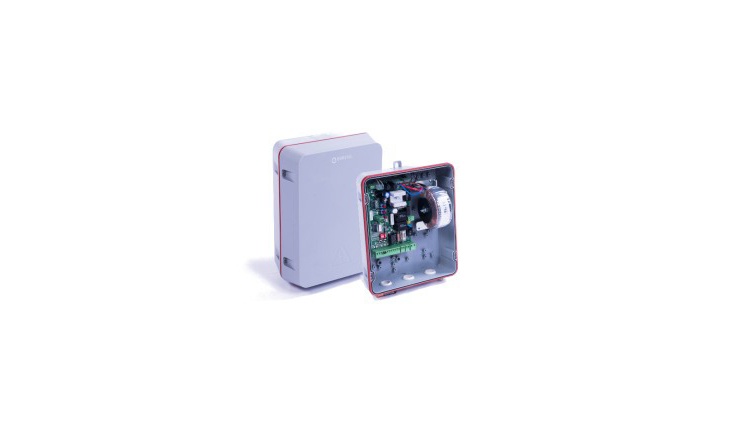

VIVO-D103
24Vdc control panel with limit switches for up-and-over and sectional doors.
- Adjustment and programming via potentiometer and dip switch
- Obstacle detection function with amperometric sensor with programmable threshold
- Connector for IRRE2/IRRE2-250 radio receiver
- Power for voltage free signalling lamp
- Input for emergency batteries (12V)
- Photocell shadow function on closing
- Soft start and stop for leaves in the opening and closing phase to prevent noisy opening and closing and rebounds
- On/Off switch control panel
MORE INFORMATION ABOUT THIS PRODUCT

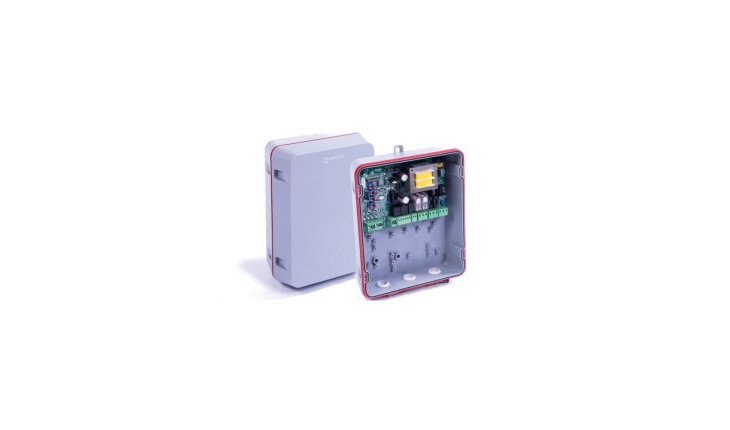

VIVO-M101,M201
12Vdc control panel with electric lock output for swing doors.
- Adjustment and programming via potentiometer and dip switch
- Power output for 24Vdc electric lock
- Connector for IRRE2/IRRE2-250 or RSD radio receiver
- Management for start and pedestrian start via radio
- Output for garage light/courtesy light with timer
- Soft start and stop for leaves in the opening and closing phase to prevent noisy opening and closing and rebounds
- Management of 2 motors with independent brakes (VIVO-M202)
- Dead man function
MORE INFORMATION ABOUT THIS PRODUCT
VIVO-M202
Analogue 230V control panel for swing doors.
- Adjustment and programming via potentiometer and dip switch
- Power output for 24Vdc electric lock
- Connector for IRRE2/IRRE2-250 or RSD radio receiver
- Management for start and pedestrian start via radio
- Output for garage light/courtesy light with timer
- Soft start and stop for leaves in the opening and closing phase to prevent noisy opening and closing and rebounds
- Safety input on closing and opening
- Management of 2 motors with independent brakes
- Dead man function
MORE INFORMATION ABOUT THIS PRODUCT

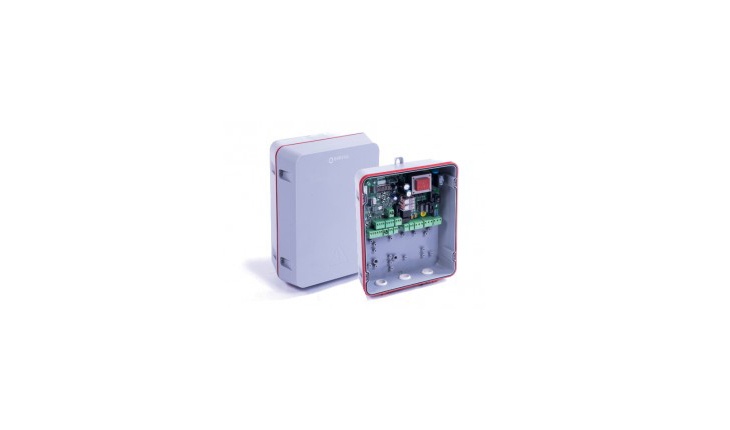

VIVO-M203
Control panel for swing, sliding and up-and-over doors with 230Va single-phase motors.
- Programming with 4 push buttons and 4 digit 7 segment display
- Power output for 12Vdc electric lock
- Management for start and pedestrian start via radio
- Connector for traffic light management card
- Output for garage light/courtesy light with timer
- Soft start and stop for leaves in the opening and closing phase to prevent noisy opening and closing and rebounds
- Safety input on closing and opening
- Photocell shadow function on closing (up-and-over doors)
- Input for limit switches on opening and closing
- Input for safety strips (mechanical or resistive 8k2)
- Ready for E-LINK remote management system
MORE INFORMATION ABOUT THIS PRODUCT
VIVO-M204
Control panel for swing, sliding and up-and-over doors with 230Va single-phase motors.
- Programming with 4 push buttons and 4 digit 7 segment display
- Power output for 12Vdc electric lock
- Management for start and pedestrian start via radio
- Connector for traffic light management card
- Output for garage light/courtesy light with timer
- Soft start and stop for leaves in the opening and closing phase to prevent noisy opening and closing and rebounds
- Safety input on closing and opening
- Photocell shadow function on closing (up-and-over doors)
- Input for limit switches on opening and closing
- Input for safety strips (mechanical or resistive 8k2)
- Ready for E-LINK remote management system
MORE INFORMATION ABOUT THIS PRODUCT

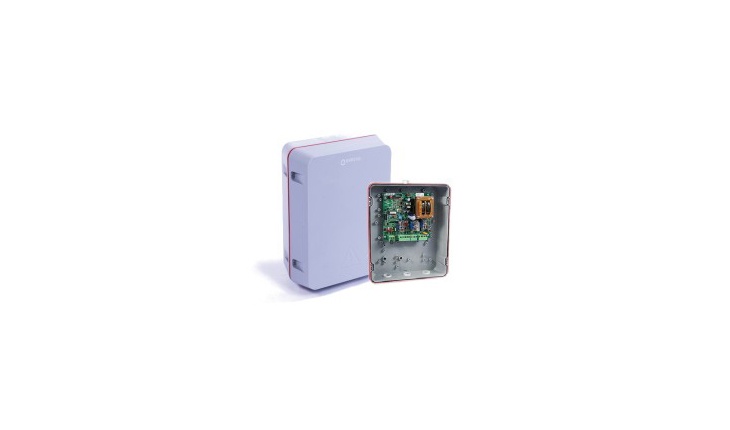

EPEB, EPEB-PAL
Control panel for swing doors with analogue 230Vac single-phase motors and encoder.
- Power supply for a swing door 230Vac single-phase motor
- Power output for 12Vdc electric lock
- Management for start via radio
- Connector for traffic light management card
- Output for 3sg garage light/courtesy light
- Encoder input for 2 signals
- Viewing input status via LED
MORE INFORMATION ABOUT THIS PRODUCT

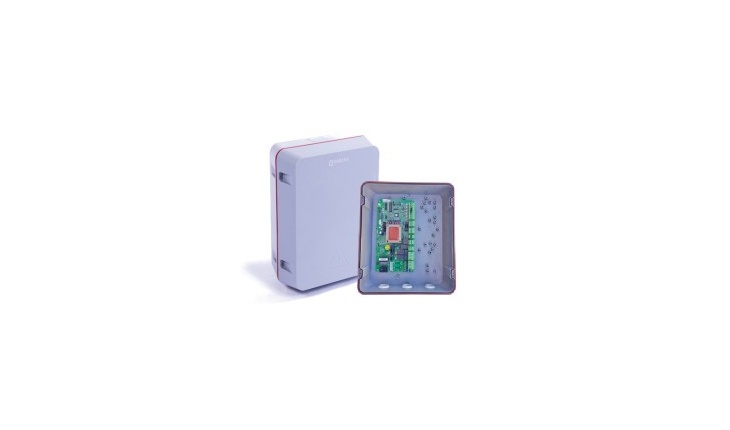

AM600S
Analogue 230V control panel for sliding and up-and-over doors.
- Adjustment and programming via potentiometer and dip switch
- Connector for IRRE2/IRRE2-250 or RSD radio receiver (built-in fixed code uncoding)
- Power output for 230V signalling lamp (for use in flashing lights)
- Connector for traffic light management card
- Encoder input for 1 signal
- Safety input on closing and opening
MORE INFORMATION ABOUT THIS PRODUCT
AM606S
Analogue 230V control panel for sliding and up-and-over doors.
- Adjustment and programming via potentiometer and dip switch
- Connector for IRRE2/IRRE2-250 radio receiver (built-in fixed code uncoding)
- Power output for 230V signalling lamp (for use in flashing lights)
- Connector for traffic light management card
- Encoder input for 1 signal
- Safety input on closing and opening
MORE INFORMATION ABOUT THIS PRODUCT

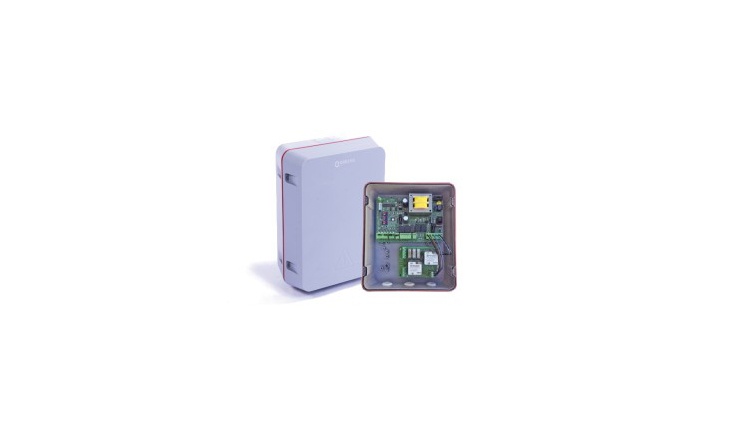

VIVO-M101PT
Control panel for sliding and up-and-over doors.
- Adjustment and programming via potentiometer and dip switch
- Power output for 12Vdc electric lock
- Connector for IRRE2/IRRE2-250 radio receiver (built-in fixed code uncoding)
- Power output for 230V signalling lamp (for use in flashing lights)
- Connector for traffic light management card
- Safety input on closing and opening
- Dead man function
CLEVER01, 02
230V control panel for roller doors.
- Adjustment and programming via potentiometer and dip switch
- Connector for IRRE2/IRRE2-250 radio receiver (built-in fixed code uncoding) (CLEVER01)
- Connector for IRRE2/IRRE2-250 radio receiver (CLEVER02)
- Safety input on closing and opening (CLEVER02)
- Automatic closing with programmable time
- On/Off switch control panel (CLEVER01)
- Dead man function CLEVER02)
MORE INFORMATION ABOUT THIS PRODUCT

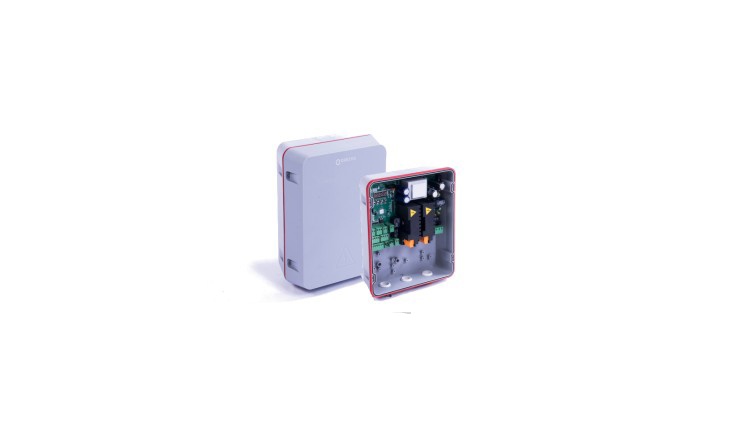

VIVO-I103, I203
230Vac digital control panel with inverter technology for swing, sliding and up-and-over doors.
- Programming with 4 push buttons and 4 digit 7 segment display
- Power output for 12Vdc electric lock
- Management for start and pedestrian start via radio
- Connector for traffic light management card
- Total and partial operating cycle counter
- Viewing input status via display
- Safety devices testing before every opening
- Dead man function
- Encoder input for 1 or 2 signals
- Access code to restrict programming changes
- On/Off switch control panel
MORE INFORMATION ABOUT THIS PRODUCT
VIVO-I204
230Vac digital control panel with inverter technology for swing, sliding and up-and-over doors.
- Programming with 4 push buttons and 4 digit 7 segment display
- Power output for 12Vdc electric lock
- Management for start and pedestrian start via radio
- Connector for traffic light management card
- Total and partial operating cycle counter
- Viewing input status via display
- Safety input on closing and opening
- Safety devices testing before every opening
- Dead man function
- Encoder input for 1 or 2 signals
- Access code to restrict programming changes
- On/Off switch control panel
MORE INFORMATION ABOUT THIS PRODUCT
VIVO-T101
For sliding and swing doors.
- Adjustment and programming via potentiometer and dip switch
- Power output for 12Vdc electric lock
- Connector for IRRE2/IRRE2-250 radio receiver (built-in fixed code uncoding)
- Power output for 230V signalling lamp (for use in flashing lights)
- Connector for traffic light management card
- Safety input on closing and opening
- Dead man function
MORE INFORMATION ABOUT THIS PRODUCT
Storage Batteries

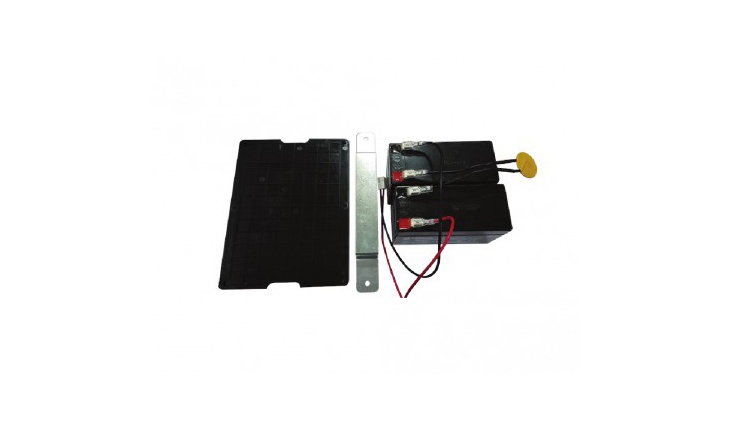

AOM01
24V auxiliary battery for door operators.
- It serves as an emergency power supply in cases of power failure
- It storages energy while the operator is electric powered
- It provides 10 door activations in cases of power failure (with a full battery)
- It comprises a plastic base, a metallic omega, two 1.3Ah baterries, and wired cables

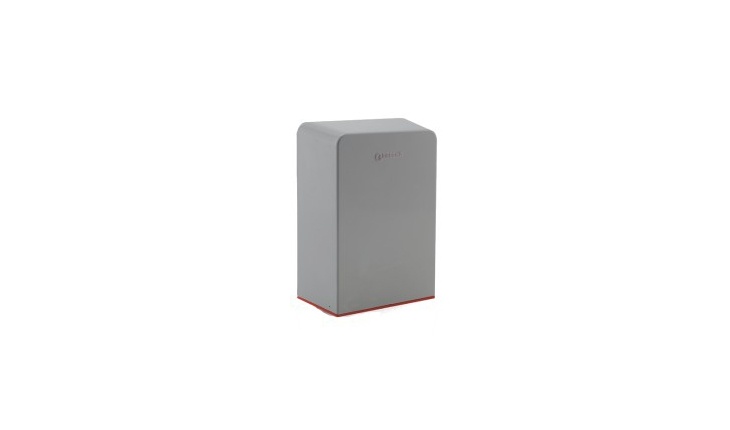

ADN01
24V auxiliary battery with charger for door operators.
- It serves as an emergency power supply in cases of power failure
- It storages energy while the operator is electric powered
- It provides 10 door activations in cases of power failure (with a full battery)
- It comprises a case, a metallic support, a charger, two 1.3Ah batteries, and wired cables

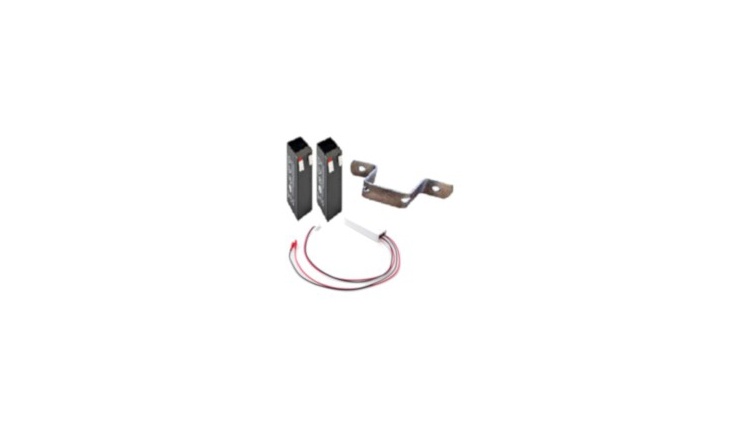

AVI04
24V auxiliary battery with charger for door operators.
- It serves as an emergency power supply in cases of power failure
- It storages energy while the operator is electric powered
- It provides 10 door activations in cases of power failure (with a full battery)
- It comprises a metallic omega, a charger, two 2.2Ah batteries, and wired cables

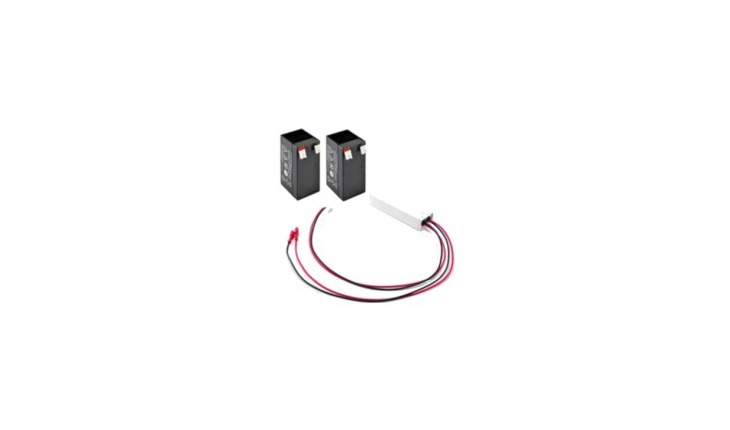

ADO01
24V auxiliary battery with charger for door operators.
- It serves as an emergency power supply in cases of power failure
- It storages energy while the operator is electric powered
- It provides 10 door activations in cases of power failure (with a full battery)
- It comprises a charger, two 1.3Ah lead batteries, and wired cables
